10mm Wireless Charging Coil - 150mA Power Charger with 5V Output for Qi-Compatible Devices - Perfect for Smartphones, Smartwatches & Wireless Earbuds Charging

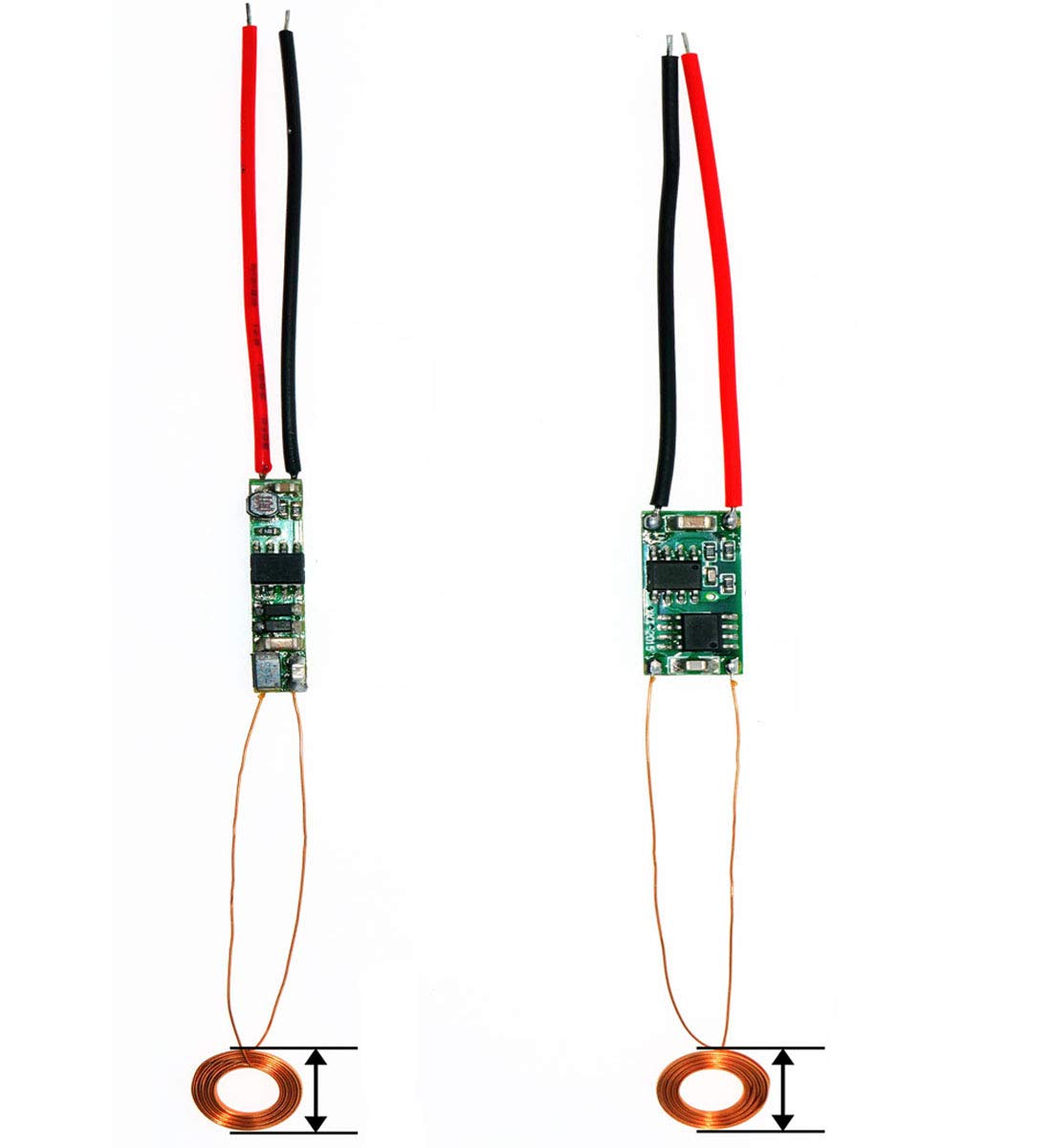

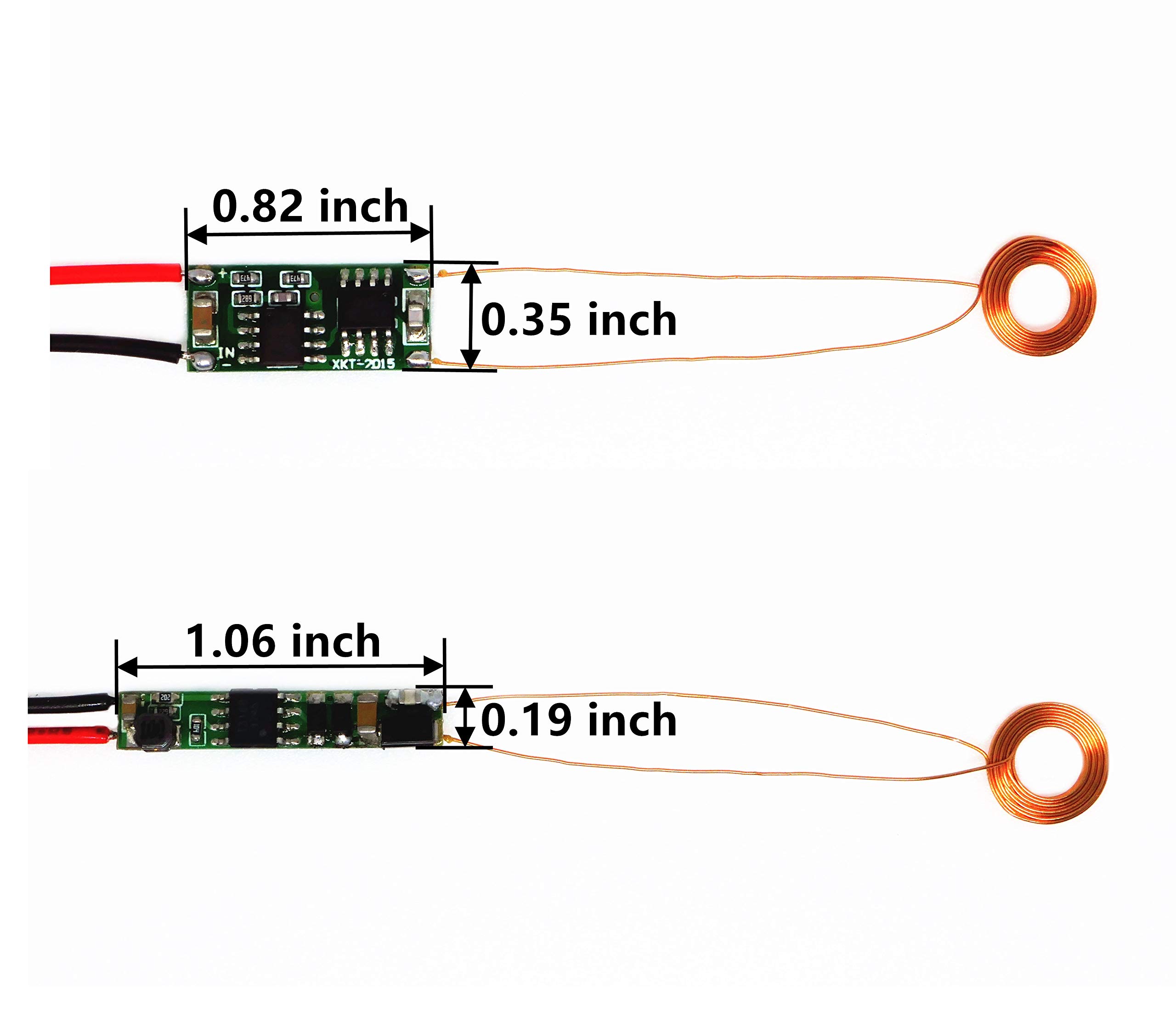

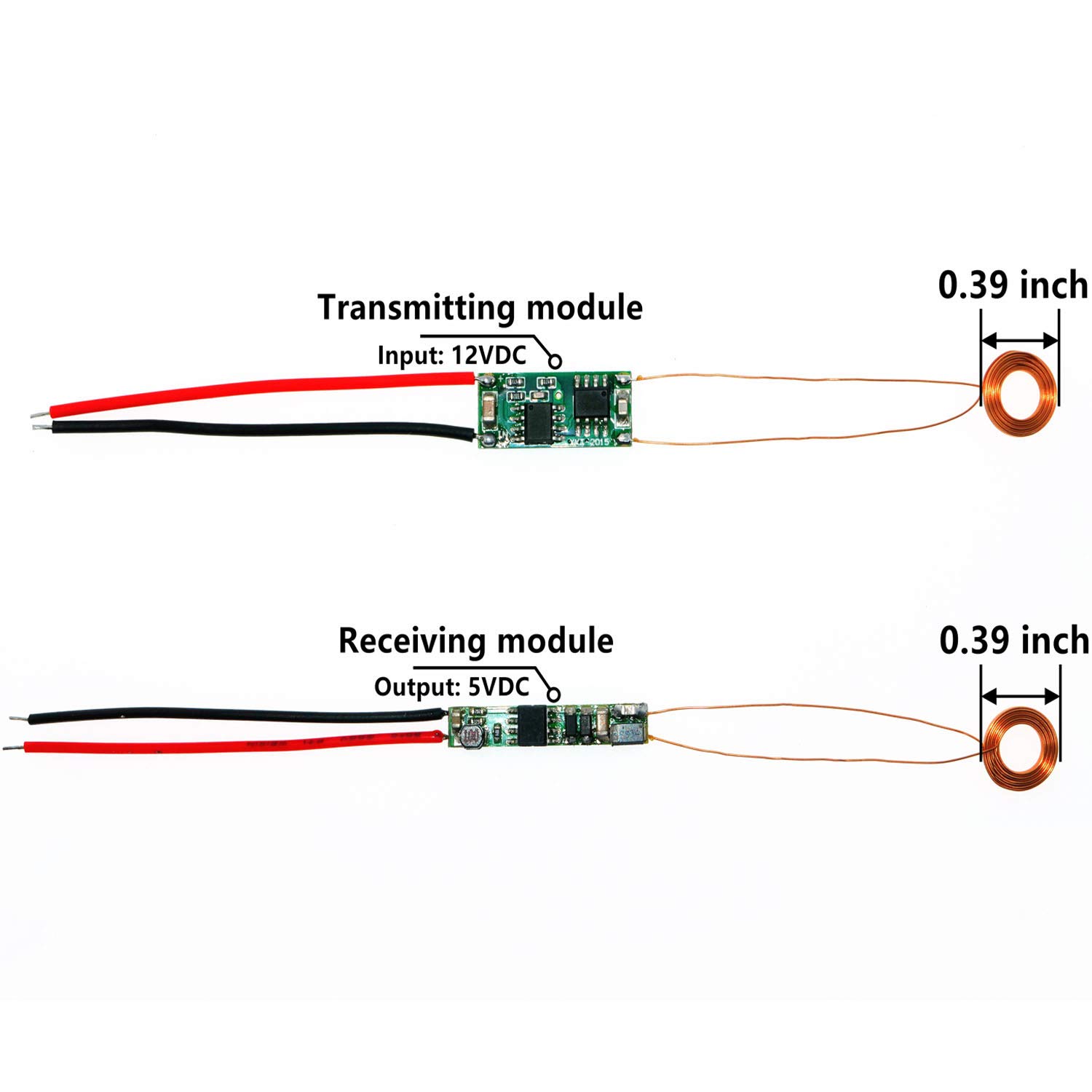

Description: input module parameters Input voltage: 9 -12 V DC Maximum load current: 1.1A Module size: 21*9*2.2mm (L*W*T) input coil outer diameter :10mm It is strictly forbidden to cover the working surface of the transmitting coil with metal blocks. Receive module parameters Output voltage: 5V DC Receive coil outer diameter: 10mm Receive PCBA size: 27 * 5* 2mm(L*W*T) Receive the best distance: 3 - 6mm Notes for use: 1. Do not connect the positive and negative input power of the transmitter module in reverse. 2. Do not short-circuit the positive and negative of the output load line of the receiving module. 3. Do not place large area metal near the coil. 4. Only non-metallic materials can be penetrated between the two coils for wireless power transmission. Package included: 1 x Transmitter 1 x Receiver

input voltage 12V DC ; output voltage Standard voltage 5V DC

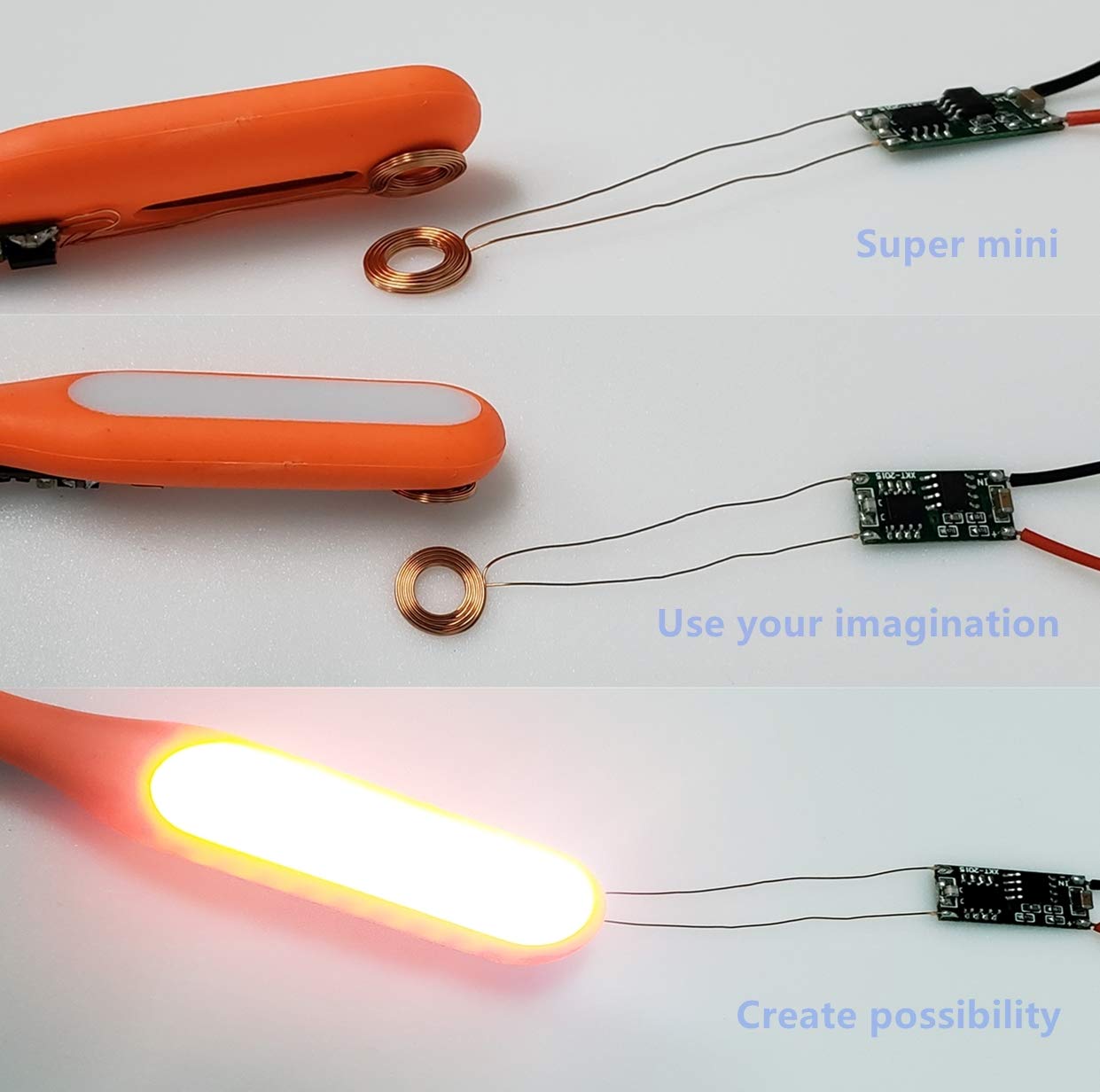

This mini wireless charging power supply perfect work for the current various series of small electronic products.

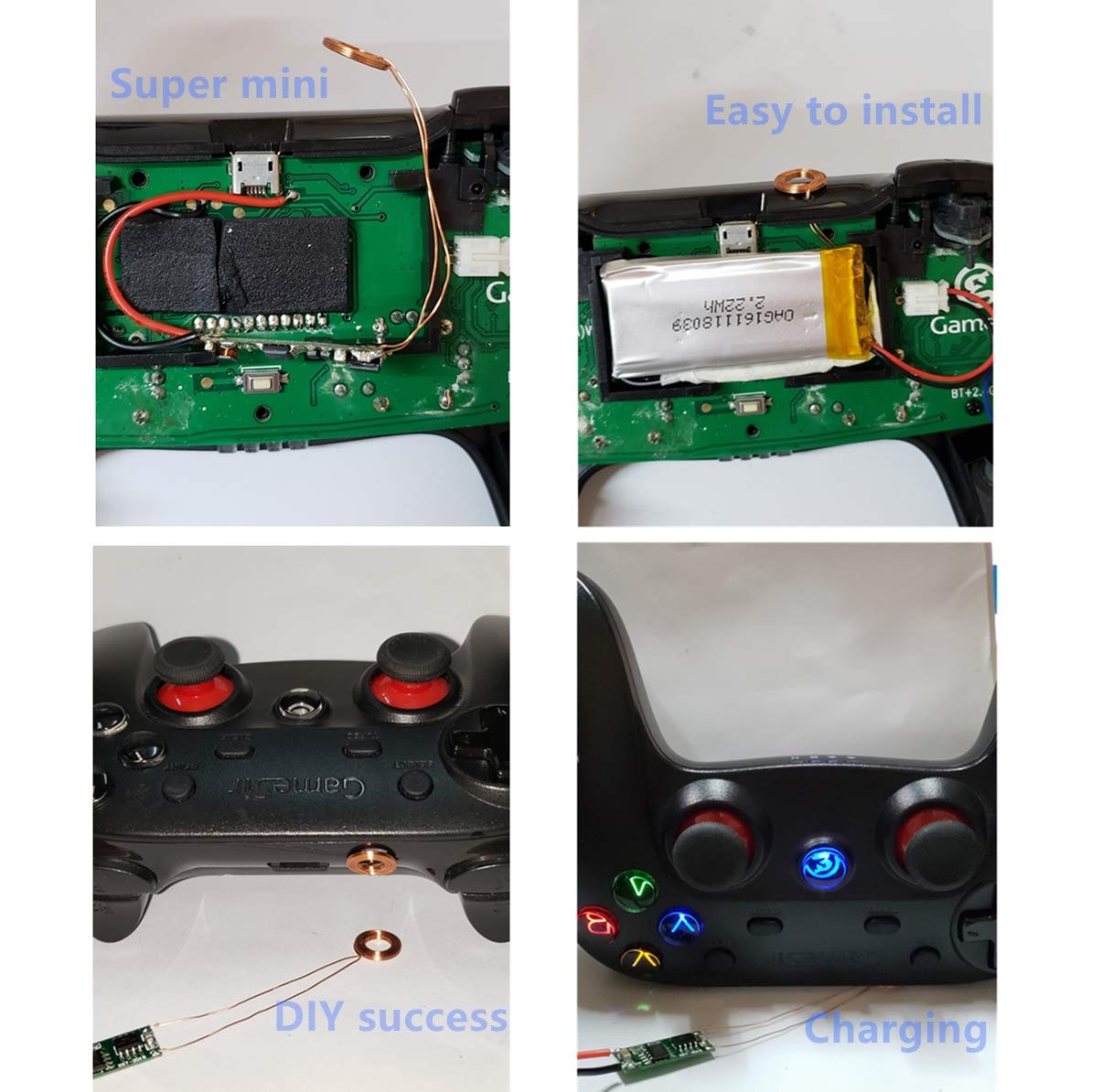

High efficiency, low cost features primarily for mobile electronics products such as cell phones, game machine, fish tank, MP3, MP4, digital cameras, electric shavers, machine learning, and so on.

As a result of non-contact charging power supply, make the product completely sealed (Waterproof and dustproof), increase the life of the product .

Pack 1 pcs Wireless charge Charging
